– High gain across entire UHF band, including channels 14 through 69 __(’Read the rest of this entry »’)
– 15 to 25 mile range
– 15.7 dB maximum gain
– 27dB front-to-back ratio
– Uni-directional Yagi style design
See more technical details
For those looking for a powerful but discreet digital antenna, the PF7 is the answer. This antenna utilizes powerful UHF elements hidden in an attractive cherry wood picture frame that holds an 8″ x 10″ photo. The frame includes both a wall hanger and table mount and installs in seconds. Like most indoor antennas, it performs best in strong signal areas (usually within 15 miles of the transmitter).

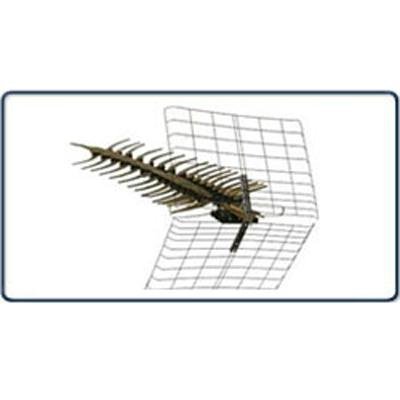

This high performance UHF antenna has a higher gain and a smaller beam angle than conventional yagi antennas. The reflector grids create an improved front to back ratio with shorter construction while the 91 elements truly make it one of the highest gain UHF antennas available.Although the 91XG is one of the highest gain UHF antennas made, it is also very directional. If you live more than 60 miles from the transmitters, you must get as much elevation on the antenna as possible. Even with its great gain, it cannot pick up signals blocked by the curvature of the earth.
Intended for people at great distances from the transmitters, the DB8 is a powerful multi-directional HD antenna. In fact, its 15.8dB gain make it one of the most powerful multi-directional antennas available.The bow tie design of the DB8 uses triangular elements instead of rods to greatly increase the bandwidth allowing it to cover the entire UHF band. Additionally, the mesh reflector of the bow tie is more efficient than a rod reflector, is lower in weight, and provides less wind resistance for greater performance and durability.This DB8 is the ideal antenna for use in locations that can pull long range signals from various directions and offers an attractive alternative to using a directional antenna mounted on a rotator.
Although the DB2 was originally designed for outdoor use, it has quickly become one of the most popular indoor antennas due to its small size and extraordinary gain. The bowtie design provides strong gain across the entire UHF spectrum and it functions incredibly well in areas where a low profile antenna is required.
